Child Resistant Vape Cartridge Boxes

Child Resistant Vape Cartridge Boxes Built Around Controlled Access

A child resistant vape cartridge box from Packaging Leaders can be developed around the actual cartridge dimensions, internal insert and a controlled opening mechanism. For products and markets where child-resistant packaging is required, the structure needs to do more than hold the cartridge securely. The opening sequence, locking components and ability to reclose the package may all matter. Packaging can therefore be developed around both the cartridge and the intended safety function.

Start With the Cartridge Dimensions

The outer security mechanism should not replace accurate product fit. Cartridge length, tank diameter, mouthpiece shape and connector profile should be measured before the internal tray or cavity is designed. A 0.5 mL cartridge may require a different insert from a 1 mL format, and even cartridges with the same capacity can vary in physical dimensions. The CR structure can then be developed around the finished internal footprint.

Choose an Appropriate Locking Concept

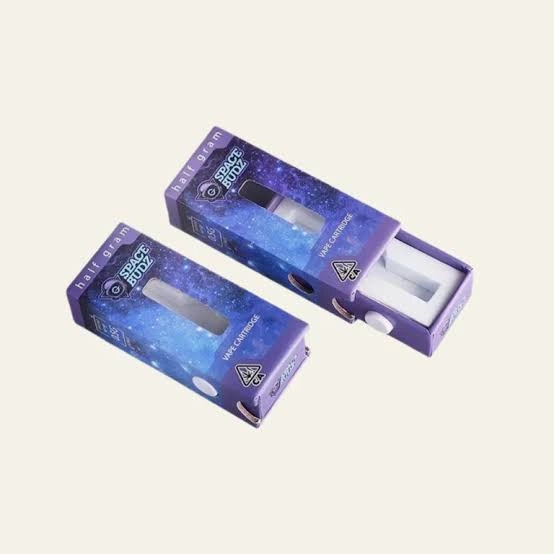

Child-resistant packaging can use different mechanical approaches depending on the package design. A push-and-slide structure can require one action to release the lock while the user moves the internal tray. Button-lock drawer boxes can use a concealed or integrated release point before the tray can move. Other configurations may use squeeze-and-pull or multi-step opening actions. The selected mechanism should be evaluated as part of the complete finished packaging system rather than treated as a decorative feature.

Make Adult Opening Practical

Child resistance is not intended to make packaging impossible to use. A properly developed structure should create a deliberate opening sequence while remaining practical for intended adult users. Release points, arrows or opening instructions can be incorporated where appropriate. The amount of force required, location of the locking feature and movement of the tray all influence usability. This balance is one reason tested child-resistant packaging should be distinguished from an ordinary tight-fitting drawer box.

Keep the Cartridge Locked in Position

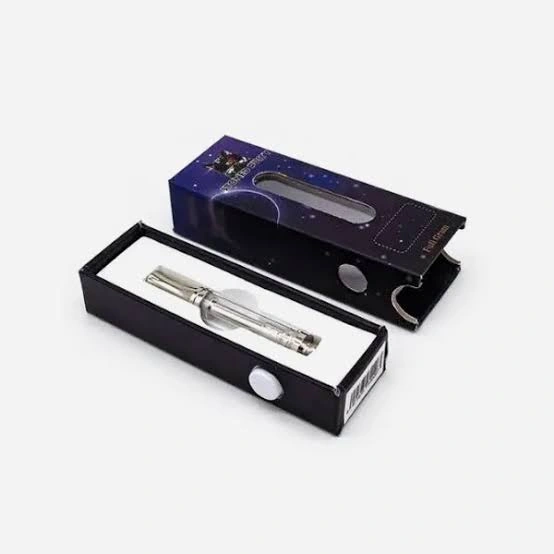

The security mechanism controls access to the package. The insert controls movement of the cartridge. Paperboard, EVA, foam, molded pulp or another suitable insert can hold the cartridge in a defined position. The cavity can support the tank body while leaving suitable clearance around the mouthpiece and threaded connector. For multiple cartridges, separate channels can prevent direct contact between units.

Coordinate the Insert With the Lock

Internal components should not interfere with the CR mechanism. A tray that becomes distorted by an oversized insert may not move through the outer sleeve correctly. Likewise, an insert that places excessive pressure on the box walls can affect locking tolerances. Packaging Leaders can coordinate the cartridge cavity, tray dimensions and opening mechanism as one structural system.

Consider Reclosure

Some packaging applications require the protective function to continue after the first opening. Where reclosable child-resistant packaging is required, the locking mechanism should engage correctly when the package is closed again. That means tray position, locking tabs, button alignment and dimensional tolerances need to remain consistent through repeated use. The intended market and product requirements should be confirmed before the final structure is selected.

Add Tamper Evidence Separately Where Needed

Child resistance and tamper evidence serve different purposes. A child-resistant mechanism is intended to restrict access by young children. A tamper-evident feature is intended to provide visible evidence that a package may have been opened or altered. Depending on the product and destination market, the finished packaging may require one, the other or both. Labels, seals, tear strips or other suitable solutions can be planned separately from the core CR mechanism.

Leave Room for Instructions and Required Information

A locking package may need opening instructions in addition to normal product information. The dieline can reserve areas for product identification, cartridge specifications, batch or lot information, barcodes, QR codes, applicable warnings and market-specific labeling. Opening graphics should remain clear without interfering with mandatory information. Planning these areas before finishing and branding are applied helps prevent overcrowding.

Customize the Exterior Without Changing the Mechanism

CR packaging can still carry a complete brand identity. CMYK or Pantone printing can create the main artwork system, while foil stamping, embossing, debossing or Spot UV can highlight selected elements. Matte or soft-touch finishes can change the surface feel. However, decorative treatments should not interfere with locking points, instructions or dimensional tolerances that are important to the opening mechanism.

Test the Finished Configuration Before Making CR Claims

A box should not be called child resistant simply because it uses a push button or sliding tray. Where a certified or regulation-compliant CR package is required, the finished structure should have appropriate testing and documentation for its intended configuration and market. Changes to dimensions, materials, closures or other functional components may affect whether existing test data remains relevant. Packaging Leaders can develop the physical box around the requested CR structure while brands should confirm the applicable testing, certification and labeling requirements before market release.

Build Safety Into the Structure

Child-resistant packaging works best when safety is part of the structural design from the beginning. The cartridge fit, insert, tray, locking feature, reclosure behavior and printed instructions all need to work together. Packaging Leaders can develop custom vape cartridge boxes around those relationships so the package combines controlled access, organized product presentation and branded retail packaging without treating the safety mechanism as an afterthought.
