Custom Vape Tank Boxes

Custom Vape Tank Boxes Built Around the Hardware

Custom vape tank boxes from Packaging Leaders can be developed around the actual diameter, height and external profile of the tank. Different tank systems can vary in glass width, drip-tip shape, base diameter and connector design. A generic narrow carton may therefore leave one tank loose while fitting another too tightly. Starting with the actual hardware creates a more controlled internal fit.

Measure the Widest Tank Diameter

Tank diameter is one of the most important dimensions. The glass section, metal frame or base may represent the widest point depending on the model. Packaging Leaders can use the maximum external diameter rather than relying only on a nominal tank specification. This establishes enough lateral clearance for packing while allowing the insert to keep the product centered.

Measure the Complete Height

Total height should include every fixed part of the packaged tank. That can include the base, glass chamber, upper hardware and drip tip. If the carton or insert is too shallow, the top or bottom of the tank may carry pressure when the package closes. Controlled clearance above and below the product helps keep sensitive components away from unnecessary load.

Protect the Glass Section

Glass is one of the defining vulnerabilities of vape-tank hardware. An oversized empty carton allows the tank to move and can increase the possibility of impact during handling. Paperboard, foam or EVA inserts can support stronger sections of the hardware while reducing lateral movement around the glass. The cavity should retain the product without squeezing the glass itself.

Leave Clearance Around the Drip Tip

The drip tip can extend beyond the main tank body and may have a narrower profile. A fitted cavity should provide enough headroom so the upper closure does not press directly against it. For removable drip tips, the packaging can either hold the component in place on the tank or provide a separate accessory cavity depending on the product configuration. The internal layout should follow the way the tank will actually be supplied.

Support the 510 Thread and Base

Many tank systems use a 510-style connection at the bottom. The connector should not become the primary load-bearing point inside the package. An insert can support the surrounding base while leaving appropriate clearance for the threaded section. This helps keep the tank upright without concentrating pressure on a small mechanical component.

Add Space for Replacement Components

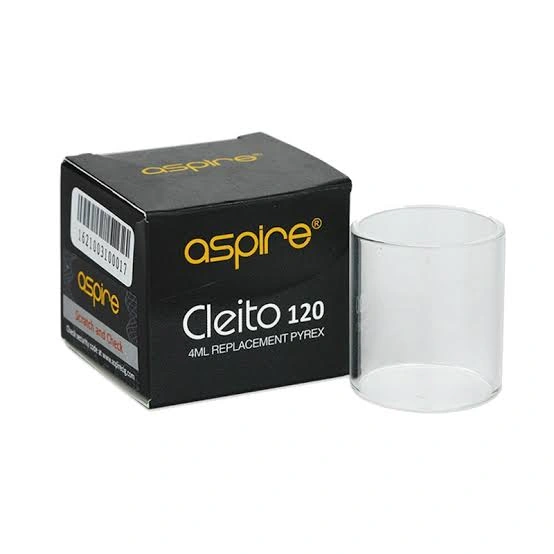

Some vape tanks are supplied with more than the tank itself. Replacement glass, coils, seals, O-rings or small accessories may need to be included in the package. These components can use separate cavities or compartments rather than sitting loosely alongside the main tank. A layered tray can also place the tank on top while smaller replacement parts remain organized underneath.

Choose the Right Insert Material

Paperboard inserts can provide lightweight retention and work efficiently with folding cartons. EVA or foam can create more precisely shaped cavities for fragile or presentation-focused tank packaging. A molded or layered solution can also be considered where several components need different depths. The insert should be chosen according to the product weight, glass exposure and intended presentation.

Select a Compact Retail Structure

Straight tuck and reverse tuck cartons can provide efficient packaging for individual tanks. Sleeve-and-tray structures create a controlled slide-out reveal while keeping the tank centered inside a tray. Two-piece or rigid boxes can be used where a more substantial presentation is appropriate. The structure should remain proportional to the product rather than adding unnecessary volume around a compact piece of hardware.

Add Windows Only When Product Visibility Helps

A die-cut window can reveal the tank or glass section before the box is opened. If a window is used, the insert should position the hardware accurately behind it. Enough board should remain around the cutout to maintain carton strength. A full printed front panel may be more useful where specifications and compatibility information require additional space.

Make Compatibility Easy to Read

Tank buyers often need to identify model, capacity, compatible hardware or other manufacturer-approved specifications quickly. The packaging can reserve a clear information area for those details. Model identification, barcode, batch information, QR codes and package contents can also be organized into dedicated panels. The exact technical claims should come from the hardware manufacturer rather than being inferred from the packaging design.

Create a Consistent Tank Range

Several tank models can share one visual packaging system even when their physical dimensions differ. Logo placement, typography, information hierarchy and finishing can remain consistent while the dieline and insert are adjusted to each tank. Color or graphics can differentiate individual models. This creates a recognizable product family without forcing every tank into the same physical box.

Finish the Carton Without Hiding the Details

Foil stamping, Spot UV, embossing and debossing can highlight selected branding elements. Matte, gloss and soft-touch finishes can alter the overall surface appearance. Because vape tank boxes are often compact and specification-heavy, finishing should not reduce the readability of product information.

Package the Tank as Hardware

The best vape tank packaging starts with the product’s physical construction. Glass needs protection. The drip tip needs clearance. The connector needs support without pressure. Replacement components need organization. Packaging Leaders develops custom vape tank boxes around those details so the finished carton protects the hardware while providing a clear and professional retail presentation.
